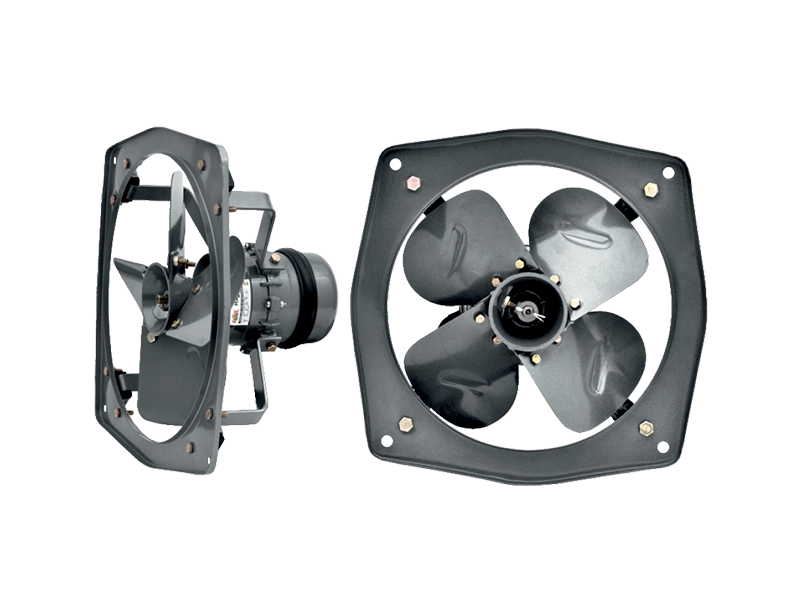

Maxima - Exhaust Fan

Maxima - Exhaust Fan

Maxima Fan

Exhaust Fan

Salient Features
  • Aerodynamically contoured handle maximum air with minimum power consumption
  • Rigid frame with rubber mounting for silent operation
  • Epoxy powder coating with specially pretreated components for better resistance to corrosion and acid alkali fumes
  • Totally enclosed highly efficient heavy duty motor with pressure die cast aluminium rotor mounted on two ball bearings

Exhaust Fan
Size (mm) Size (Inch) RPM Capacity Watts AMP
225 9 1400 1.5mfd 42 0.21
300 12 1400 2.5mfd 90 0.40
380 15 1400 4mfd 160 0.77
450 18 1400 5mfd 410 1.9
600 24 1400 10mfd 550 2.42
